QUALITY ASSURANCE FOR CUSTOM PARTS
CNC Machining Quality Control & Inspection
VOGUC links drawing review, machining controls and final verification to the agreed part specification. Buyers define critical features, sampling and required records during RFQ review—not after production.
ISO 9001:2015Quality management system
ISO 14001:2015Environmental management system
Up to ±0.01 mmCritical dimensions after review
3 inspection methodsCMM, vision and height measurement
CONTROLLED FROM THE START
Five Quality Control Stages
The appropriate checks depend on the drawing and project risk. This workflow creates clear checkpoints from enquiry to shipment.
Material & setup
Check supplied material information, establish datums and prepare the machining and inspection route.
First-off verification
Measure the first completed features before continuing when geometry and project risk require it.
In-process control
Monitor key dimensions, tool condition and process stability during machining.
Final inspection
Verify drawing requirements, appearance and quantity before controlled packaging and shipment.
MEASUREMENT CAPABILITY
Equipment Selected for the Feature
Move over an inspection method to preview the actual equipment. Open any method for its applications, measurement logic and practical limitations.

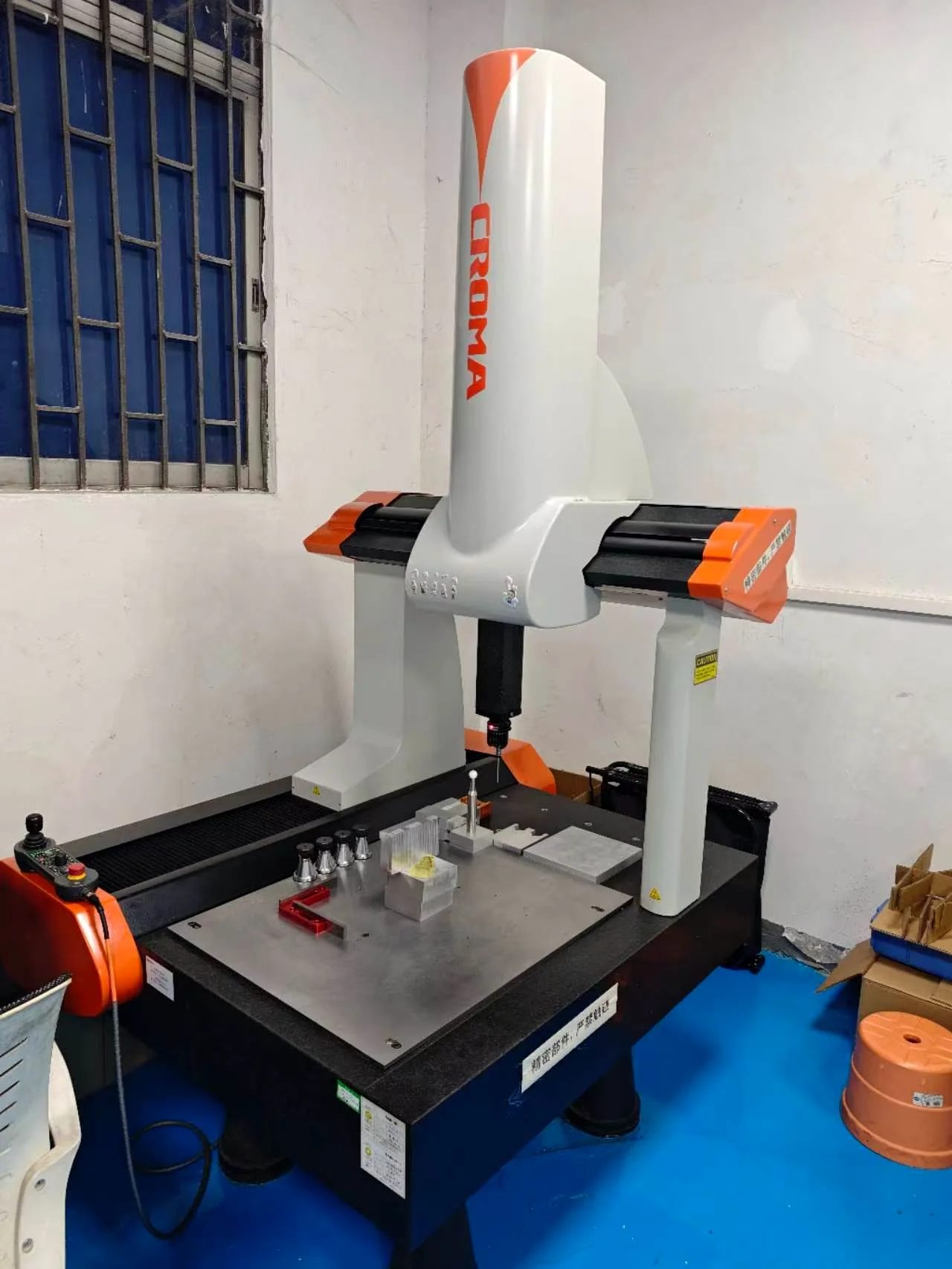

3D CMM3D CMM inspection uses coordinate measurement for complex geometry, feature position and datum-related dimensional checks.2.5D vision measurementOptical measurement for profiles, edges, hole locations and smaller planar features.Digital height gaugeHeight, step, datum and comparative measurements on a suitable surface-plate setup.
QUALITY DOCUMENTATION
Agree the Evidence Before Production
Inspection documents are most useful when the required format, dimensions and sampling plan are agreed at quotation.
CMM inspection report
CMM results for agreed drawing characteristics can be supplied according to the project inspection scope.
Full dimensional report
Measured results can be recorded against the agreed drawing dimensions and sampling plan.
Material certificate
Supplier material certificates or related material documentation can be coordinated when specified before quotation.
Other agreed records
FAI formats, balloon drawings, shipment inspection records and other documents can be reviewed by project.
Sanitized full dimensional report sampleCustomer names, part identifiers and batch references were replaced before publication. The sample demonstrates a possible structure; project scope must be agreed during quotation.
Download XLSX SampleSHIPMENT PROTECTION
Packaging Selected for Part Geometry
These are real VOGUC shipment-preparation photographs. Wrapping, separation and internal restraint are selected according to weight, finish, edges and transport risk.

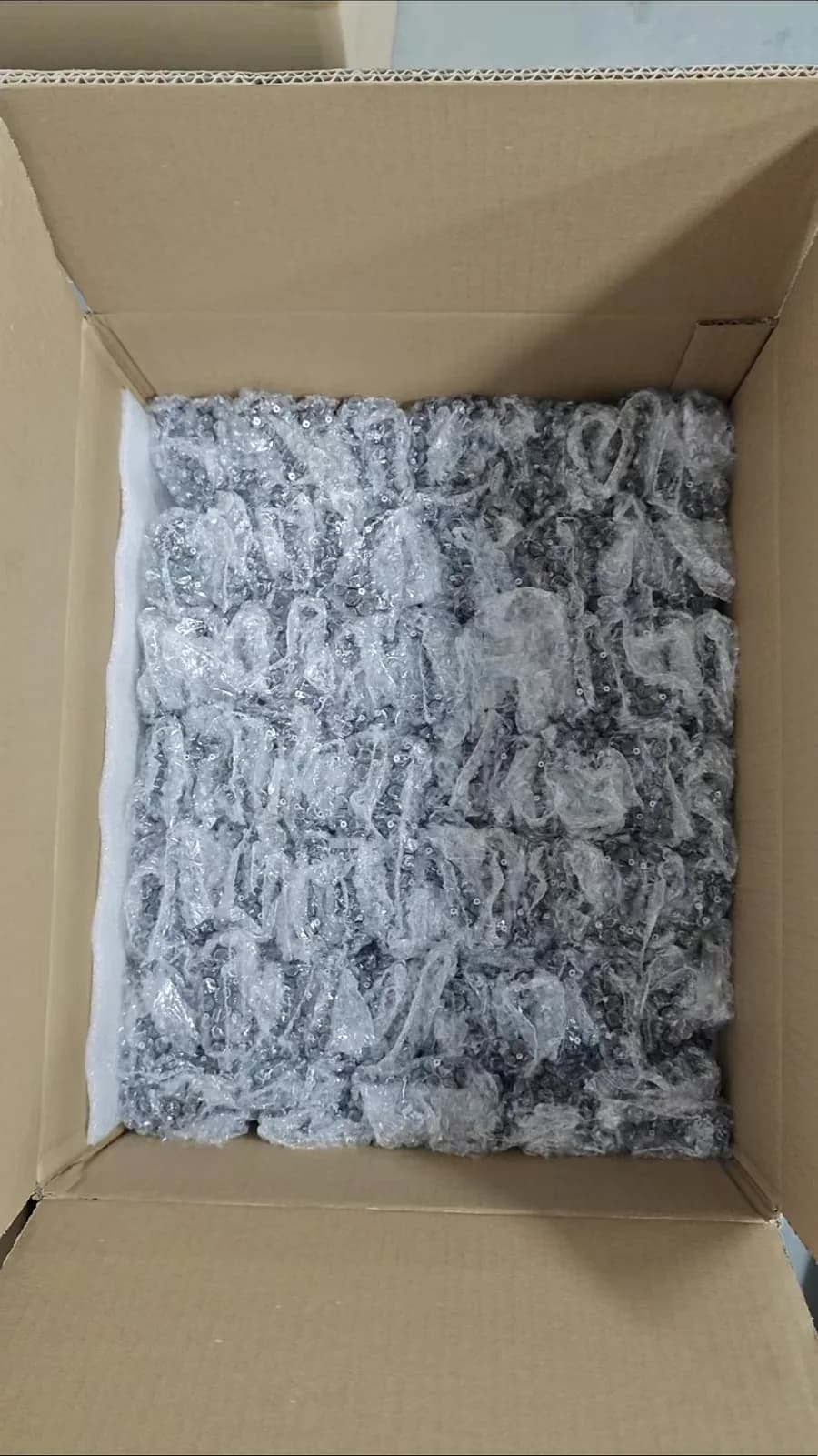

Individually protected parts
Small components are separated to reduce contact and cosmetic damage during transport.

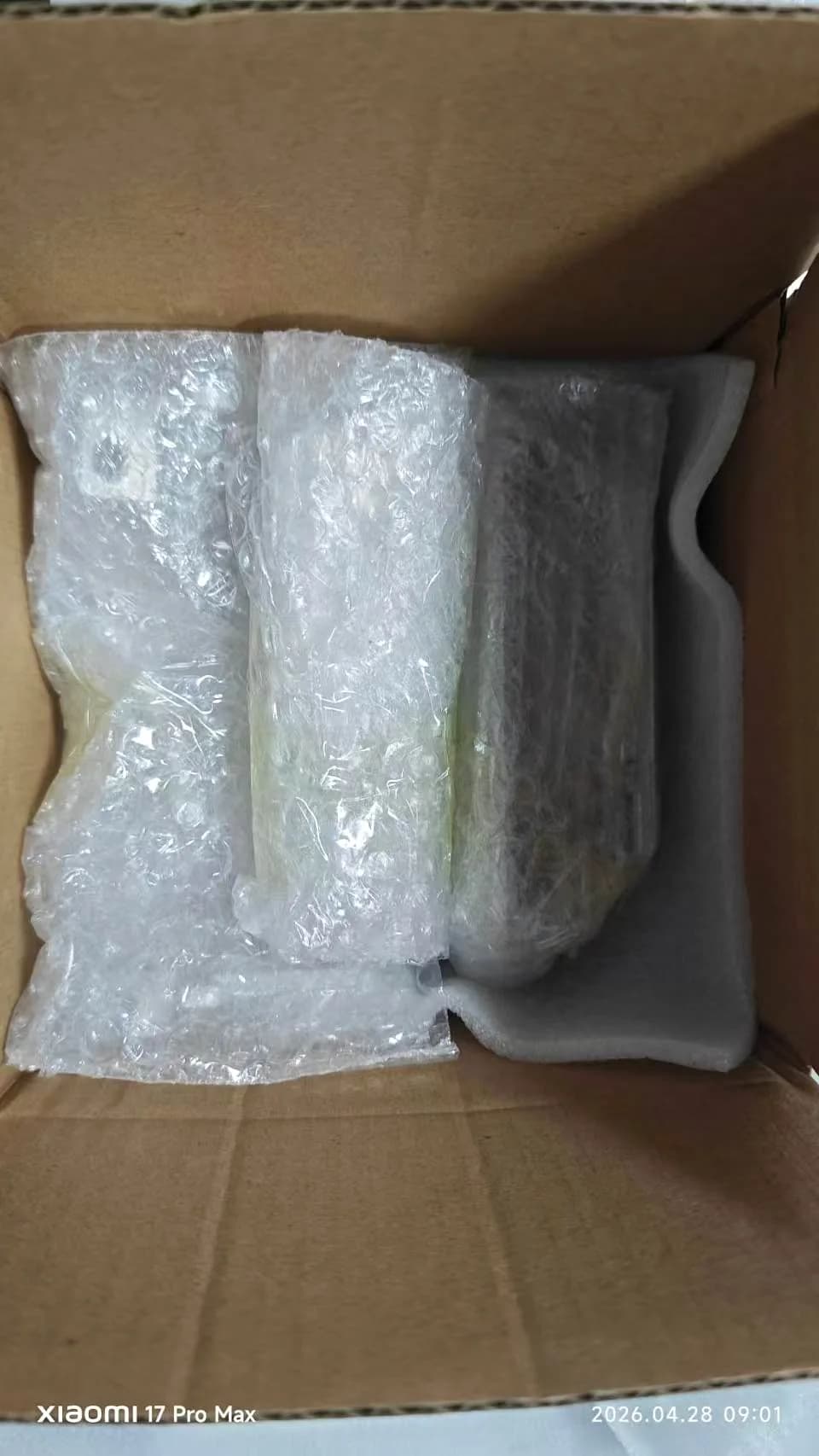

Foam and bubble protection
Part geometry and surface risk determine the combination of wrapping, foam and internal restraint.

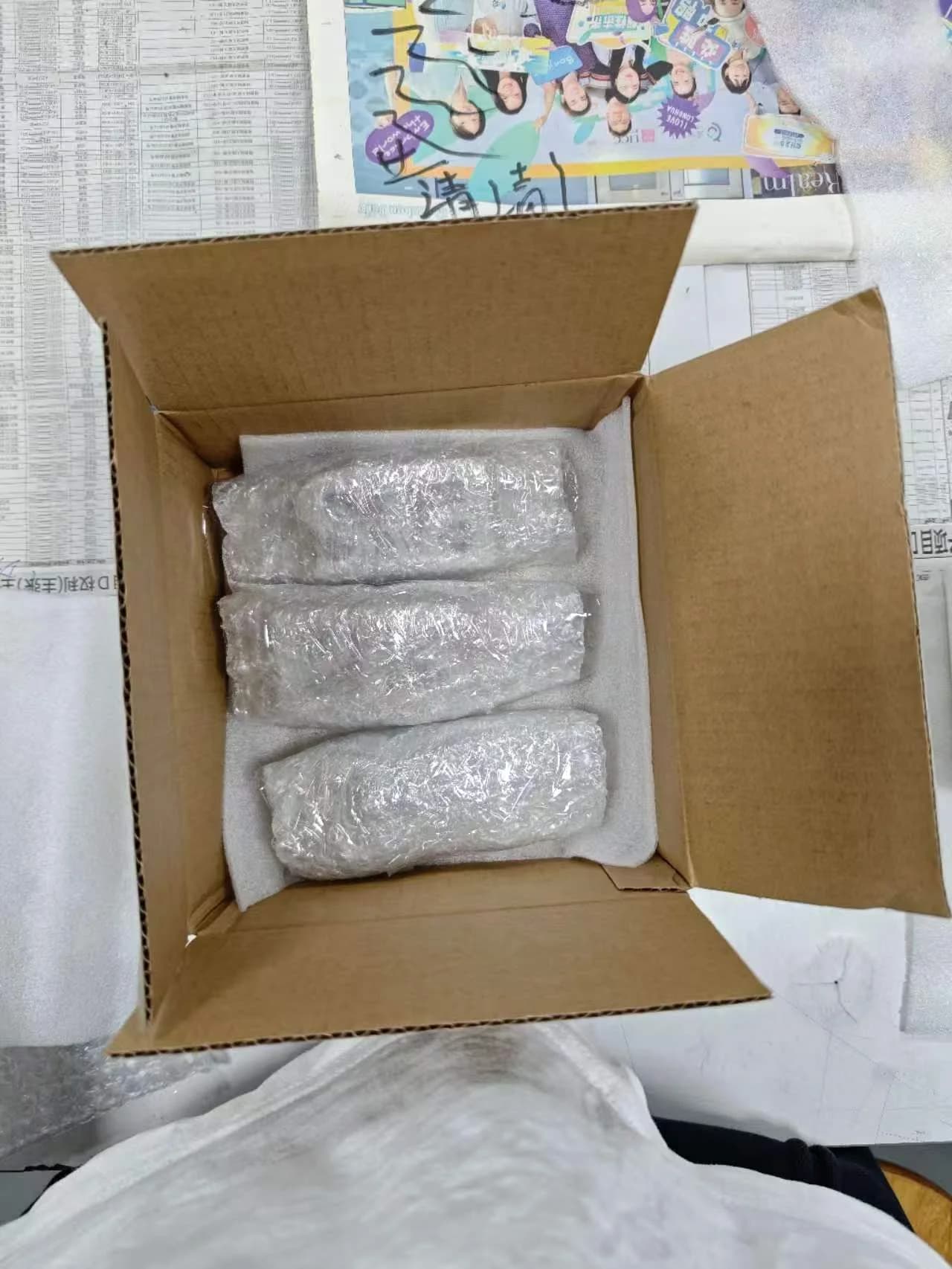

Separated shipment groups
Larger or differently shaped components can be wrapped and isolated within the same outer carton.
CERTIFIED SYSTEMS
Certificates
Displayed for customer reference. Project-specific regulatory or documentation requirements must be stated during quotation.

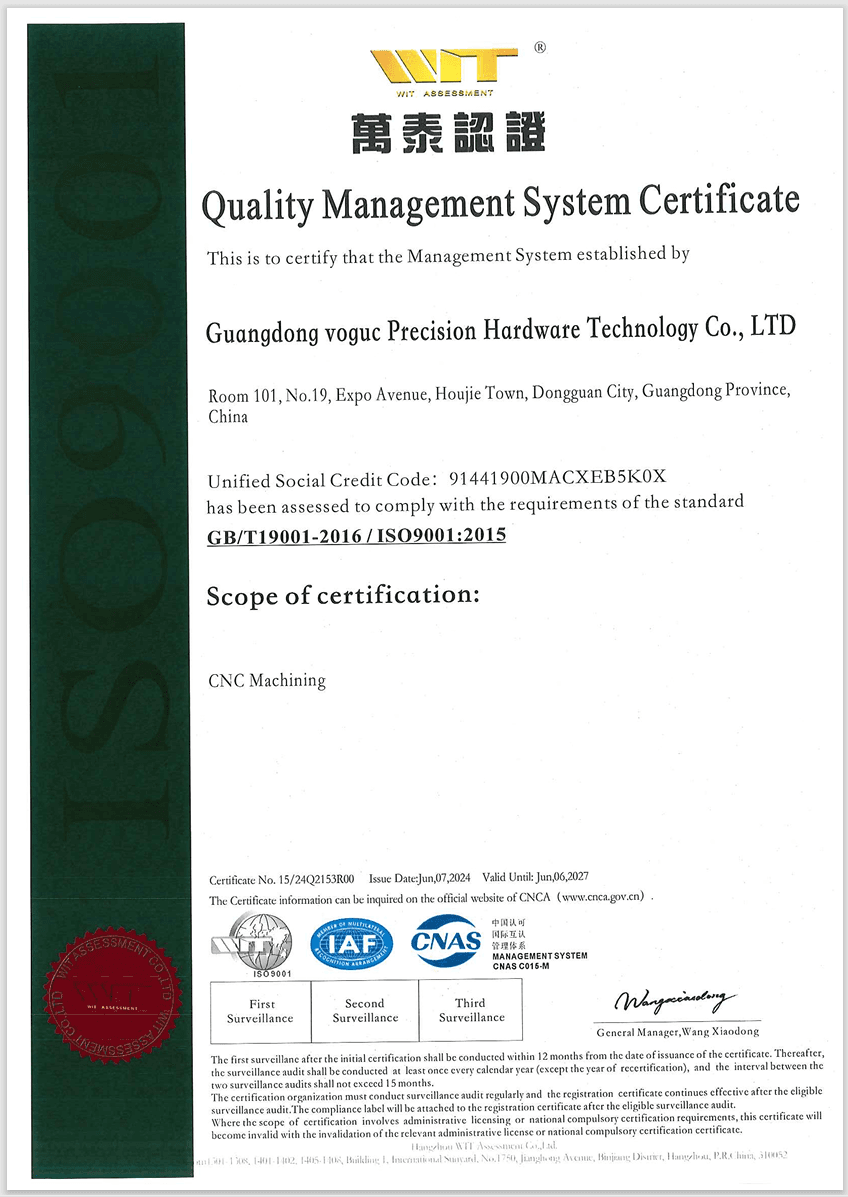

ISO 9001:2015
Quality management system certification with CNC machining in the certificate scope.

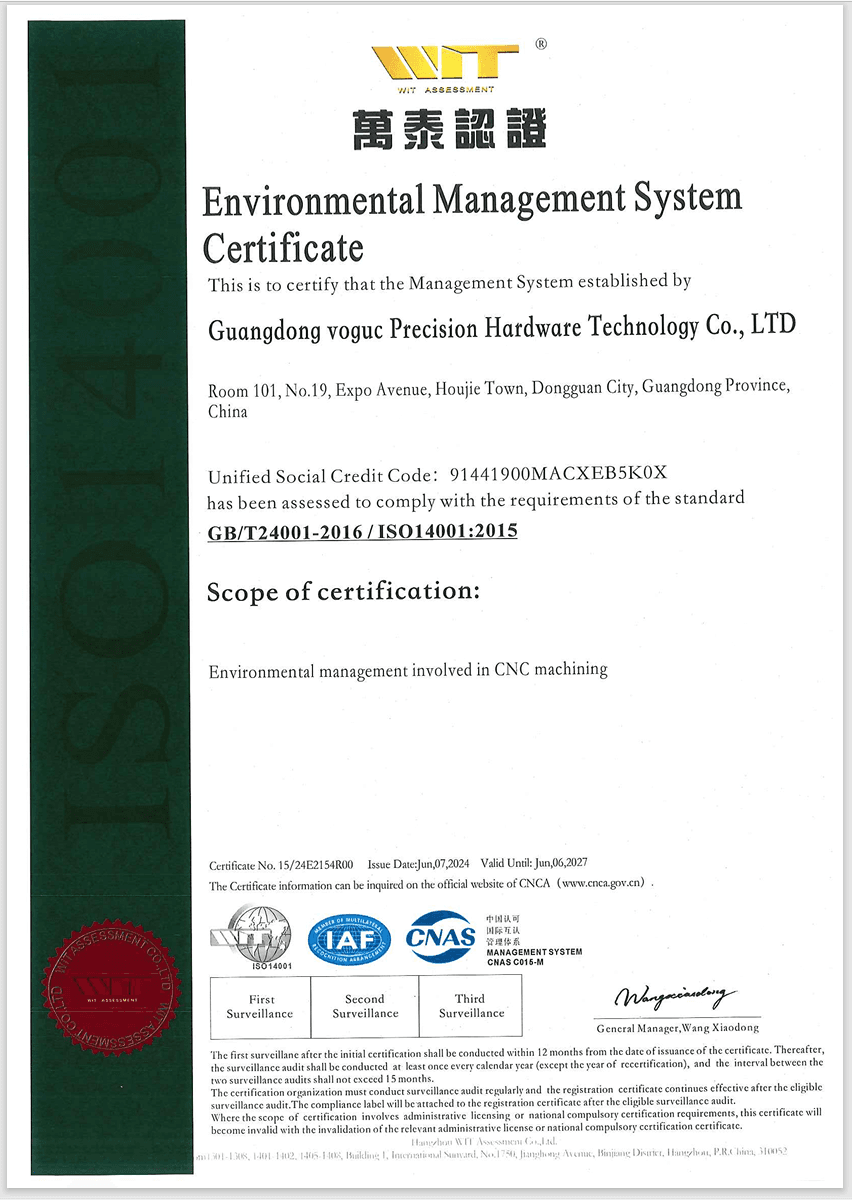

ISO 14001:2015
Environmental management system certification related to CNC machining activities.
BUYER RESOURCES
Plan Quality Before Production
Use these guides to define requirements that can be quoted, manufactured and verified consistently.
CNC Supplier Quality Inspection Checklist
Define supplier evidence, measurement scope and shipment checks before placing an order.
Review the inspection checklistCNC Machining Tolerances Guide
Understand how tolerance, datum strategy and measurement access influence process risk and cost.
Plan practical tolerancesCNC Machining Resource Center
Prepare drawing files, 3D models, materials, quantities, finishes and inspection requirements for an RFQ.
Prepare your projectQUALITY FAQ
Common Inspection Questions
Does ±0.01 mm apply to every dimension?
No. Critical dimensions can reach ±0.01 mm after drawing, geometry, material and process review. Applying the tightest tolerance to every feature can add unnecessary cost and risk.
Do you follow ISO 2768?
General tolerances can follow the ISO 2768 class specified on the customer drawing. The drawing should identify the class and any dimensions that require separate tolerances.
Can I request a full dimensional report?
Yes, but the required characteristics, sampling quantity, report format and any balloon drawing should be agreed before quotation.
How are finished parts protected for shipment?
Parts are cleaned and packaged according to geometry, surface finish and transport risk. Cosmetic surfaces and delicate features receive additional separation or protection as needed.
Define quality requirements before quotation
Send your drawing, critical characteristics, inspection scope and required documentation so the manufacturing plan can be reviewed correctly.
